Aqua OM3 Simplex / Duplex Fiber Optic Adapter for Telecomunication Network

Brand Name : TTI

Model Number : FOA-SC-OM3

Certification : ROHS, SGS, ISO9001

Place of Origin : Guangdong, China

MOQ : Negotiable

Payment Terms : T/T, , PayPal, Monthly

Supply Ability : 10000pcs/day

Delivery Time : 2-3 days

Packaging Details : 25pcs/Case

Name : OM3 Fiber Optic Adapter

Type : Simplex, Duplex, Quad

Sleeve : Cerimic, Bronze

Housing : Plastic, Metal

Color : Blue, Beige, Aqua, Voilet...

Structure : with flange, without flange

Price : Negotiable

Contact Now

Aqua OM3 Simplex / Duplex Fiber Optic Adapter for Telecomunication Network

Description:

  • Fiber Optic Adapters allow users to couple from one connector type to another type.
  • These adapters are precision made and manufactured to demanding specifications.
  • These adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism.
  • The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.

Features:

Excellent changeability and directivity

100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Accurate external size
Individually packaged

Applications:

Fiber optic transmission system
CATV networks
LAN Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets

Specifications:

Polish Type Unit PC APC
Nominal fiber O/D um 125±2
Insertion Loss dB ≤0.20 ≤0.20
Return Loss dB ≥50 ≥65
Mating Durability (500Cycles) dB ≤0.20
Temperature Stability dB ≤0.30
Operating Temperature °C -40 to +85
Storage Temperature °C -40 to +85

Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

Ordering Information:

SC/UPC-SC/UPC-SM-SX

Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)

Step 4: Mode: Simplex, Duplex

Step 5: Sleeve: Ceramic, Bronze

Step 6: Housing material: Plastic, Metal

Packing:

25pcs/20pcs per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.

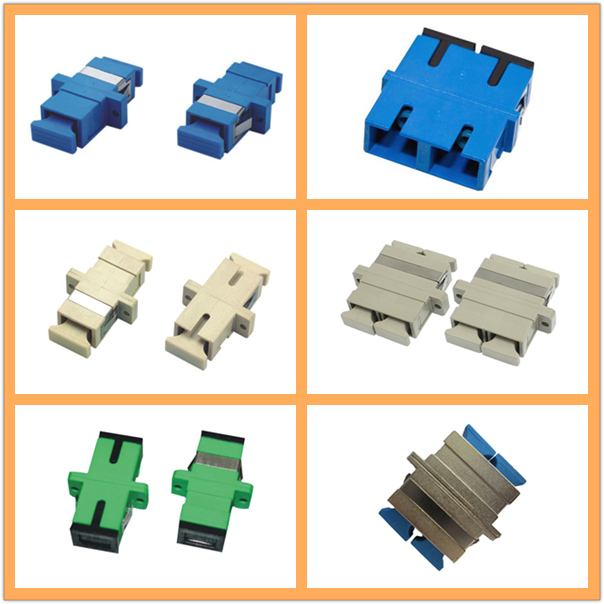

Aqua OM3 Simplex / Duplex Fiber Optic Adapter for Telecomunication NetworkAqua OM3 Simplex / Duplex Fiber Optic Adapter for Telecomunication Network

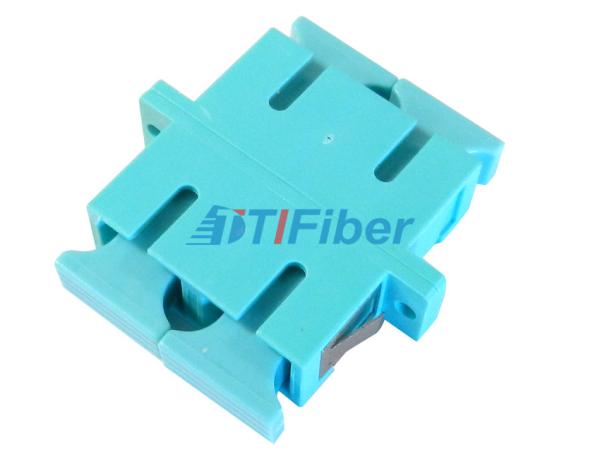

Aqua OM3 Simplex / Duplex Fiber Optic Adapter for Telecomunication Network
